37 ft Insulated Aerial Picker Truck — 4x4
Lot 08Bucket Trucks & Aerial Devices4x4, dual rear wheelsOne unit in the yardDelivered within 80 km

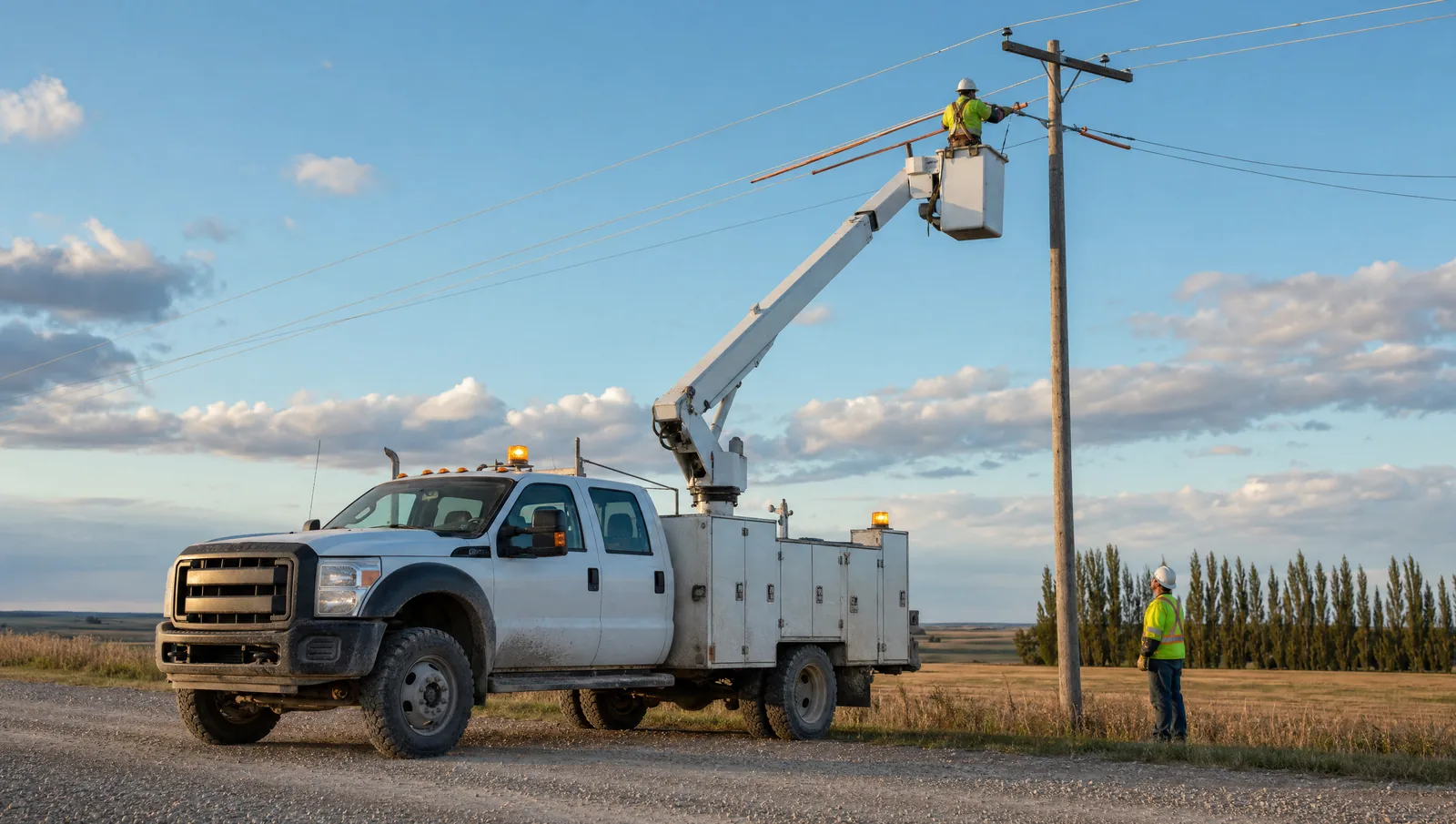

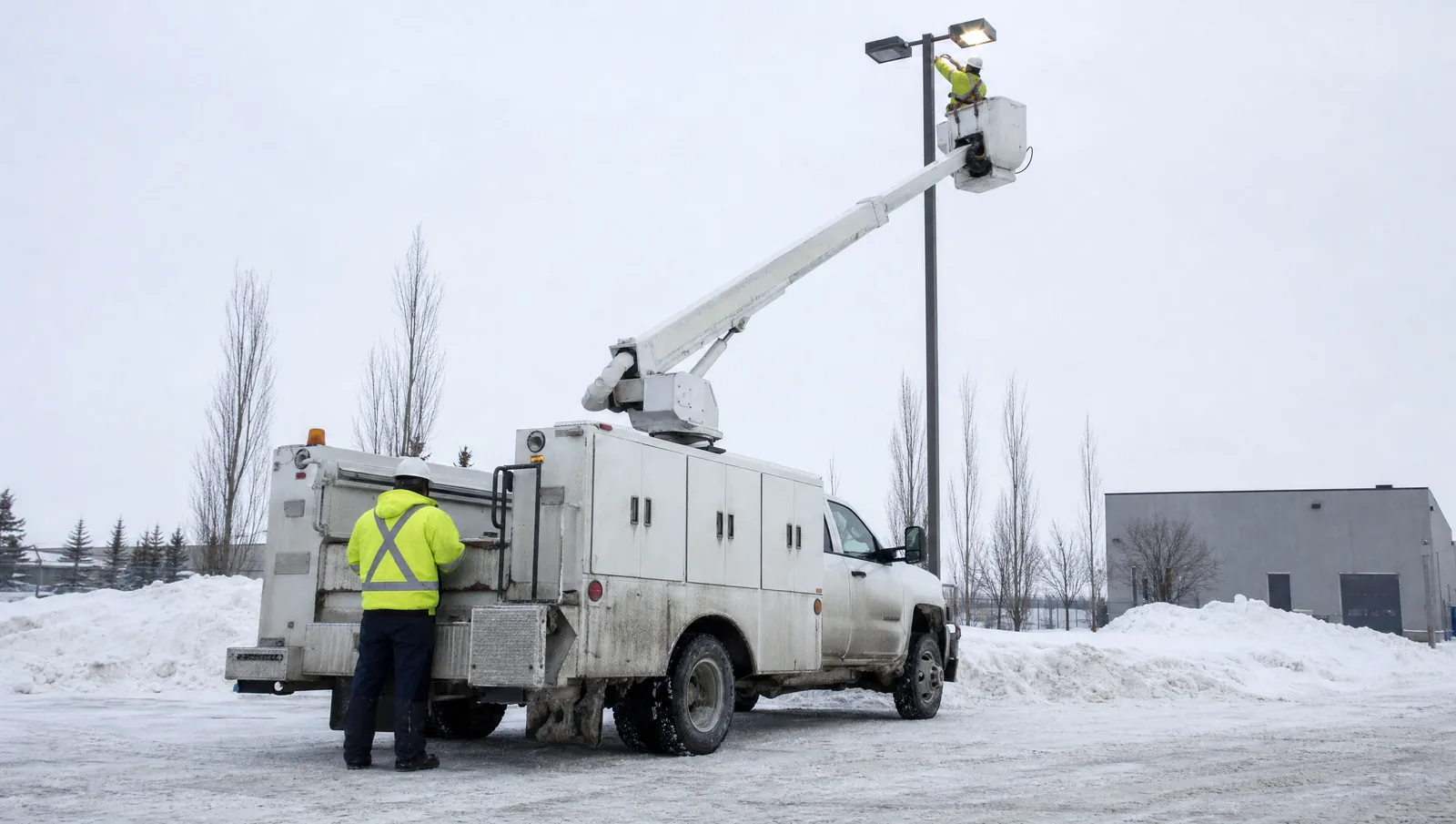

Illustrations — not photographs. These 3 frames are generated pictures of the same class of machine, built from this unit’s own specification rows. They show what the machine is and what it does. They are not photographs — of this unit, or of our yard. Ask and we will send photographs of the actual machine.
What this machine does
Load chart
Top of the lift
- Platform height
- 37 ft (11.28 m)
- Platform capacity
- 350 lb (160 kg)
One point is published, and no more. The amber line is the top of the platform, to scale. The platform rating is the limit for everyone and everything on it together. Read the capacity decal on the platform before you go up.
Specifications
- Drive
- 4x4, dual rear wheels
- Engine
- 6.4 L Power Stroke V8 diesel
- Chassis
- Ford F-550 XL Super Duty, dual rear wheels
- Payload
- 5,798 lb (2,630 kg) — GVW less tare
- Operator
- You supply a trained, certified aerial device operator. Confirm the licence class required for a 9,200 kg GVW chassis.
- Platforms
- 1
- Standards
- Complies with ANSI A92.2 and CSA C225
- Outriggers
- Not required for stability
- Tare weight
- 14,485 lb (6,570 kg)
- Service body
- Enclosed compartment service body
- Aerial device
- Versalift SST37EIH-01 (Time Manufacturing, Waco TX)
- Boom insulated
- Yes — per the manufacturer placard
- Rubber gloving
- Configured for electrical work rubber gloving
- Platform height
- 37 ft (11.28 m)
- Electrical system
- 12 Vdc
- Material handling
- NOT equipped for material handling — personnel and tools only, no load lifting
- Platform capacity
- 350 lb (160 kg)
- Rated line voltage
- 46 kV — plate rating; confirm current dielectric certification with the yard before energised work
- Dielectric category
- C
- Gross vehicle weight
- 20,282 lb (9,200 kg)
- Ambient operating range
- -40 °F to 120 °F (-40 °C to 49 °C)
- Chassis insulating system
- Yes — per the manufacturer placard
- Hydraulic operating pressure
- 2,250 psi (155 bar)
- Minimum operating temperature
- -40 °F (-40 °C) — placarded for Alberta winter, unlike the non-insulated unit
About this machine
Truck-mounted insulated aerial device on a four-wheel-drive diesel dually chassis — a picker truck that drives to the pole rather than being floated in.
The boom and the chassis are both insulated and the unit is configured for rubber-gloving work, with a category C dielectric rating and a 46 kV rated line voltage on the placard. Current dielectric certification must be confirmed with the yard before any work near energised conductors — the placard records no qualification-test date, and the rating on a decal is not the same thing as a current test certificate.
No outriggers are required for stability, so setup is quick on a road shoulder or a yard. The unit is not equipped for material handling: it lifts a person and their tools, not loads.
Pricing depends on the job, the duration and whether an operator is required, so this one is quoted rather than listed.
When it is free
One unit behind this lot — this calendar is the machine itself, not a pool. A free day here is genuinely yours to take, and a booked one has no spare to fall back on.
OCTOBER 2026
NOVEMBER 2026
- free
- turnaround — cleaning and inspection between rentals
- booked
- in the past
Pick the pickup day
What the rate covers
- Included in the published rate
- Costs extra priced, and on your quote before you commit
- Not supplied not available from the yard at any price
- IncludedEngine hours8 engine hours per rental day, metered by the telematics unit in the machine. Hours beyond the allowance are billed at the overage rate on your agreement.
- Costs extraDeliveryDelivered within 80 km of the yard · $175.00 each way · $2.75/km beyond the first 15 km, each way. Pickup from the yard is free.
- Costs extraDamage WaiverOn every order. Declinable with a valid certificate of insurance.12%of the rental
- Costs extraEnvironmental FeeOn every order.$75.00
- Costs extraGSTOn the rental and the fees.5%
- Costs extraCleaningCharged at check-in, and only if it applies.$95.00
- Costs extraFuelCharged at check-in, and only if it applies.$2.10per litre
- Costs extraRefuelling ServiceCharged at check-in, and only if it applies.$75.00
- Costs extraSecurity depositA hold placed on your card the day before pickup — an authorization, not a charge, so the money is never taken. Released once the machine is back and checked in; your bank may take a few days to show that.$1,500.00hold
- Not suppliedAn operatorThe rate is the machine on its own. You put a trained, competent person in the seat — the yard does not send one, and there is no add-on that changes that.
- Not suppliedInsuranceThe damage waiver is not insurance. It reduces what you owe for accidental damage; it does not cover theft, misuse or an untrained operator, and it does not stand in for the policy behind your certificate.
Delivery, add-ons and the waiver
What you bring
- Certified operatorA trained, competent operator. You certify at checkout that whoever runs this machine is trained and competent on this machine class.
- Certificate of insuranceA current certificate of insurance naming Cold Steel Rentals. We verify it before the machine is released — a COI is required on every rental.
- Staff approvalYour dates are held the moment you reserve. The yard checks your insurance and licence before the machine leaves — that is the only step that is not instant.
Things to know
Who may run it
- Every person who runs this machine has to be trained and competent on this class of machine.
- You certify that yourself at checkout — the yard does not test you — and it is a clause of the agreement you sign.
- Occupational health and safety law in Alberta puts that on you.
Insurance
- A certificate of insurance naming Cold Steel Rentals as additional insured and loss payee, on every rental without exception.
- 12%of the rental— damage waiver, on every order. A valid certificate on file is the one thing that takes it off.
- The yard reads the certificate before the machine is released. Send it at checkout or have your broker email it.
Cancelling
- 24hor more before pickup — cancelling costs nothing.
- 48hor more if we are delivering — a truck is committed sooner.
- Inside that window, part of the rental is kept.
