19 ft Electric Scissor Lift
Lot 12Scissor LiftsElectric slab scissor liftOne unit in the yardDelivered within 80 km

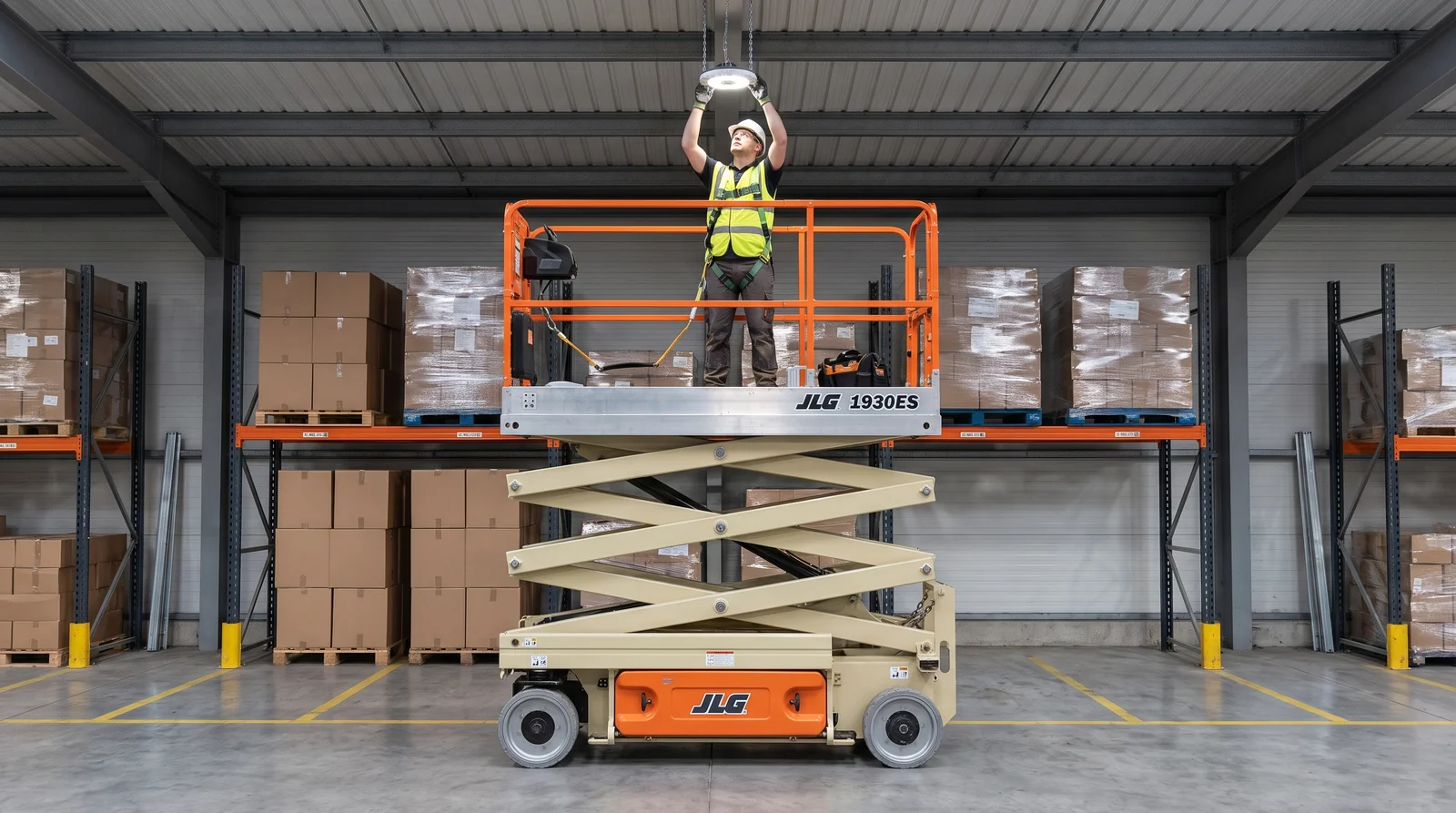

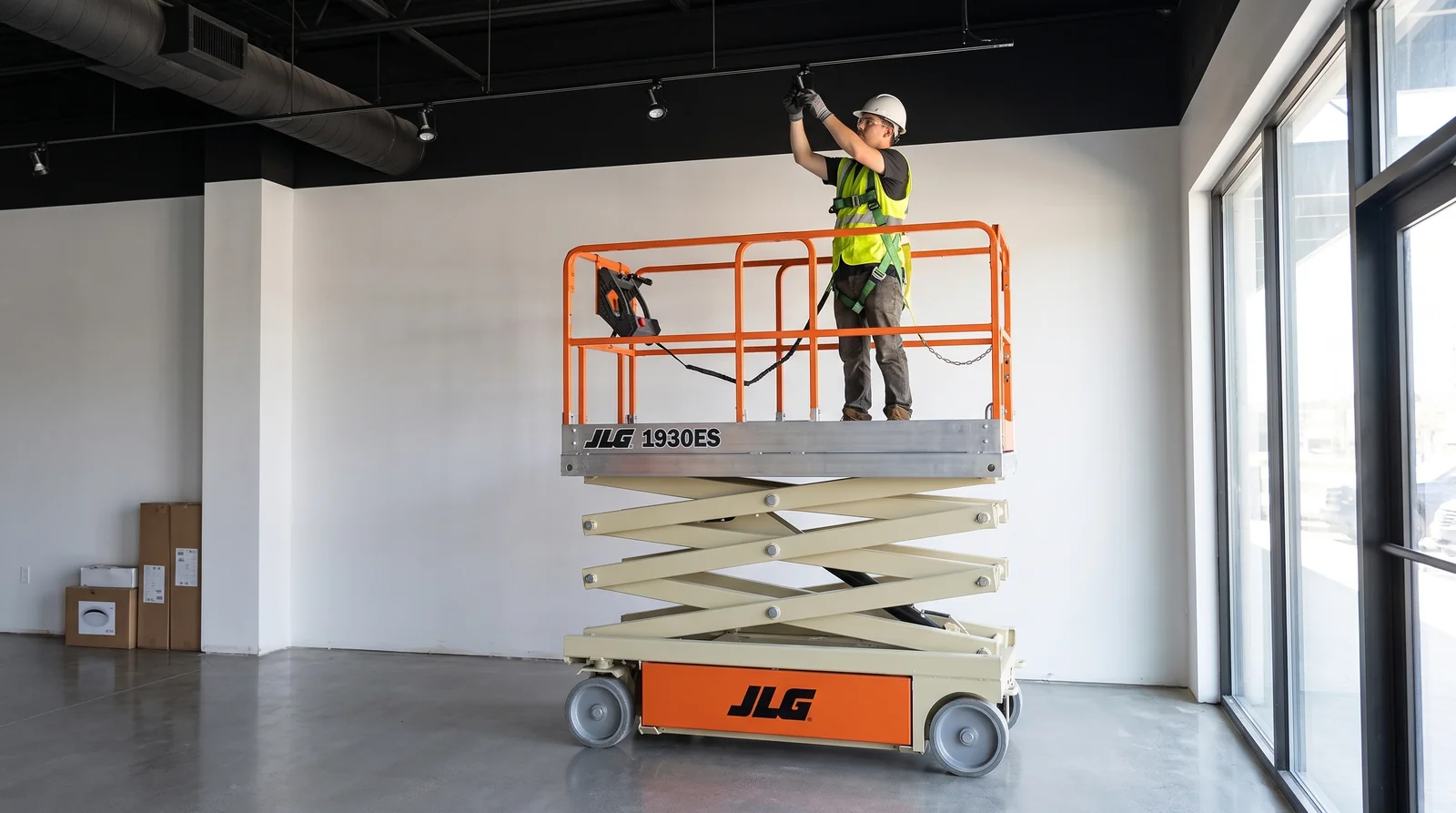

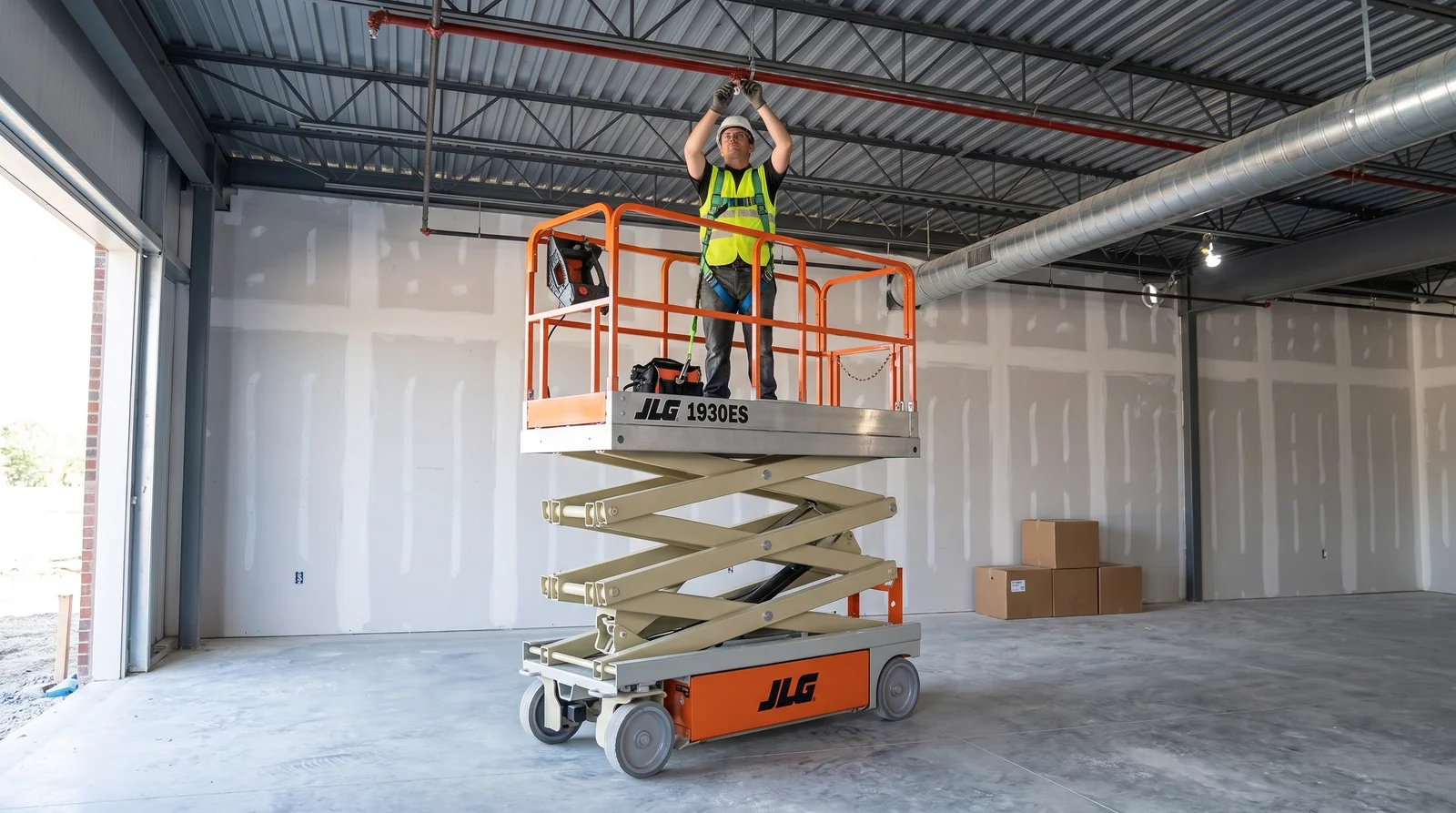

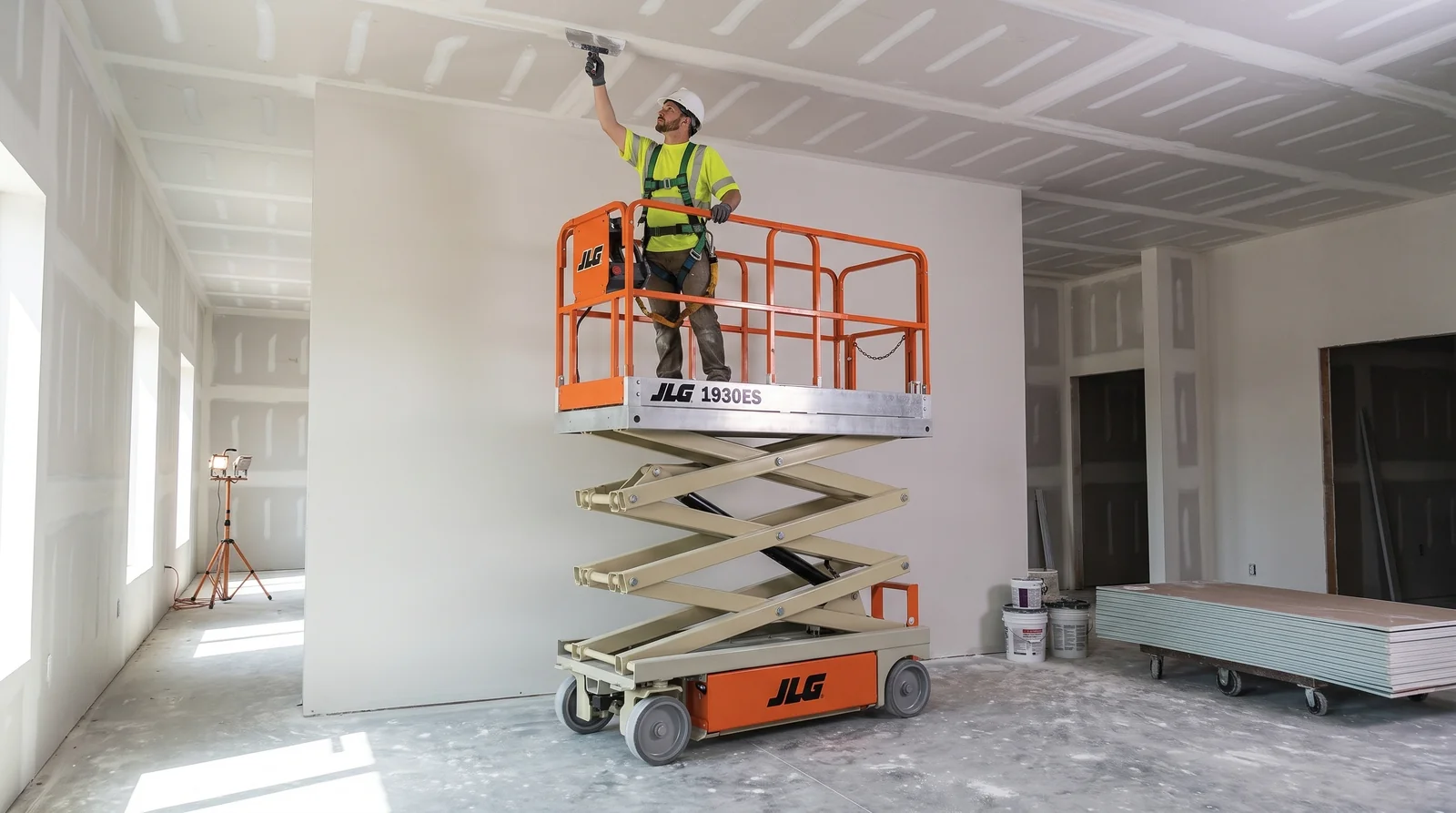

Illustrations — not photographs. These 5 frames are generated pictures of the same class of machine, built from this unit’s own specification rows. They show what the machine is and what it does. They are not photographs — of this unit, or of our yard. Ask and we will send photographs of the actual machine.
What this machine does
Load chart
Top of the lift
- Platform height
- 18 ft 9 in (5.72 m)
- Platform capacity
- 500 lb (227 kg) — 2 people, with their tools and materials
One point is published, and no more. The amber line is the top of the platform, to scale. The platform rating is the limit for everyone and everything on it together. Read the capacity decal on the platform before you go up.
Specifications
- Type
- Electric slab scissor lift
- Power
- Battery electric
- Tires
- Solid, 12.5 x 4 in (323 x 100 mm)
- Surface
- Raise, and drive raised, only on smooth, firm, level surfaces such as concrete slabs and pavement
- Best for
- Ceilings, sprinklers, lighting, ductwork, drywall and interior fit-outs
- Operator
- You supply a trained, competent operator — training is the employer's duty under Alberta OHS. Ask, and we will walk your operator through this unit's controls at pickup.
- Standard
- CSA B354.2-01, per the machine's own label
- Emissions
- Zero — rated for indoor use, and outdoors on smooth, firm, level ground
- Insulated
- NO — not insulated. Keep at least 10 ft (3 m) from power lines.
- Occupants
- 2 on the platform, and no more than 1 on the roll-out extension deck
- Wind limit
- Do not raise in winds over 45 km/h (28 mph)
- Overall width
- 30 in (0.76 m)
- Max side force
- 100 lb (445 N)
- Working height
- About 25 ft (7.6 m) — platform height plus a standing reach
- Platform height
- 18 ft 9 in (5.72 m)
- What you supply
- A CSA-approved fall-arrest harness and lanyard for each person on the platform
- Platform capacity
- 500 lb (227 kg) — 2 people, with their tools and materials
- Operating temperature
- -20 °C to 40 °C
- Extension deck capacity
- 250 lb (113 kg), 1 person
Not confirmed against the data plate, so not printed as fact: Drive speed, Gradeability, Stowed height, Stowed length, Machine weight, Batteries and charger. Ask and we will walk out and read it off the machine.
About this machine
A narrow, battery-electric scissor lift for overhead work inside a building — ceilings, sprinklers, lighting, ductwork, drywall and fit-outs. It raises two people and their tools straight up to an 18 ft 9 in platform, about 25 ft of working height, and it can creep along while raised, so the crew moves down a ceiling without coming back to the floor.
Zero emissions and 30 in wide, so it works inside an occupied building. The charger is on board and plugs into a standard grounded outlet.
Outdoors it keeps the same rating — two people, 500 lb — but only on smooth, firm, level ground such as a slab or pavement, and never in winds over 45 km/h. It is not a rough-terrain machine. Carry no drywall, plywood or panels on the platform outdoors or in wind: they act as a sail.
This lift is NOT insulated. Keep it at least 10 ft (3 m) from power lines.
You supply the operator. Training on this class of machine is the employer's duty under Alberta occupational health and safety law, and you confirm it at checkout. Ask, and we will walk your operator through this unit's controls at pickup. Our rental agreement requires a CSA-approved fall-arrest harness and lanyard for everyone on the platform.
Figures are JLG's published specifications for this model unless they were read off this machine's own decals. Anything we have not checked against the machine is left off the page and listed as unconfirmed.
When it is free
One unit behind this lot — this calendar is the machine itself, not a pool. A free day here is genuinely yours to take, and a booked one has no spare to fall back on.
OCTOBER 2026
NOVEMBER 2026
- free
- turnaround — cleaning and inspection between rentals
- booked
- in the past
Pick the pickup day
What the rate covers
- Included in the published rate
- Costs extra priced, and on your quote before you commit
- Not supplied not available from the yard at any price
- IncludedMachine hours8 machine hours per rental day, metered by the telematics unit in the machine. Hours beyond the allowance are billed at the overage rate on your agreement.
- Costs extraDeliveryDelivered within 80 km of the yard · $120.00 each way · $2.75/km beyond the first 15 km, each way. Pickup from the yard is free.
- Costs extraDamage WaiverOn every order. Declinable with a valid certificate of insurance.12%of the rental
- Costs extraEnvironmental FeeOn every order.$75.00
- Costs extraGSTOn the rental and the fees.5%
- Costs extraCleaningCharged at check-in, and only if it applies.$95.00
- Costs extraMachine hours past the allowanceMetered by the telematics unit in the machine, not estimated from the calendar.$19.69per hour
- Costs extraSecurity depositA hold placed on your card the day before pickup — an authorization, not a charge, so the money is never taken. Released once the machine is back and checked in; your bank may take a few days to show that.$500.00hold
- Not suppliedAn operatorThe rate is the machine on its own. You put a trained, competent person in the seat — the yard does not send one, and there is no add-on that changes that.
- Not suppliedInsuranceThe damage waiver is not insurance. It reduces what you owe for accidental damage; it does not cover theft, misuse or an untrained operator, and it does not stand in for the policy behind your certificate.
Delivery, add-ons and the waiver
What you bring
- Certified operatorA trained, competent operator. You certify at checkout that whoever runs this machine is trained and competent on this machine class.
- Certificate of insuranceA current certificate of insurance naming Cold Steel Rentals. We verify it before the machine is released — a COI is required on every rental.
- A CSA-approved fall-arrest harness and lanyard for each person on the platform
- Staff approvalYour dates are held the moment you reserve. The yard checks your insurance and licence before the machine leaves — that is the only step that is not instant.
Things to know
Who may run it
- Every person who runs this machine has to be trained and competent on this class of machine.
- You certify that yourself at checkout — the yard does not test you — and it is a clause of the agreement you sign.
- Occupational health and safety law in Alberta puts that on you.
Insurance
- A certificate of insurance naming Cold Steel Rentals as additional insured and loss payee, on every rental without exception.
- 12%of the rental— damage waiver, on every order. A valid certificate on file is the one thing that takes it off.
- The yard reads the certificate before the machine is released. Send it at checkout or have your broker email it.
Cancelling
- 24hor more before pickup — cancelling costs nothing.
- 48hor more if we are delivering — a truck is committed sooner.
- Inside that window, part of the rental is kept.
